RespiWin™520

Aspire to provide better care with advanced technology

  • Eight accurate pressure, volume and breathing support modes.
  • Spontaneous breath detection with trigger level selection.
  • Spontaneous breath rate counting allows monitoring of weaning.
  • Facility to set and detect various advanced alarms.
  • Respiwin 520 can be used without and/or with external O2 gas supply
  • Real time graphs help in analysing the patient’s condition with ease.
  • Advanced turbine-driven systems provide accurate delivery.
  • Up to 3 hours battery backup.

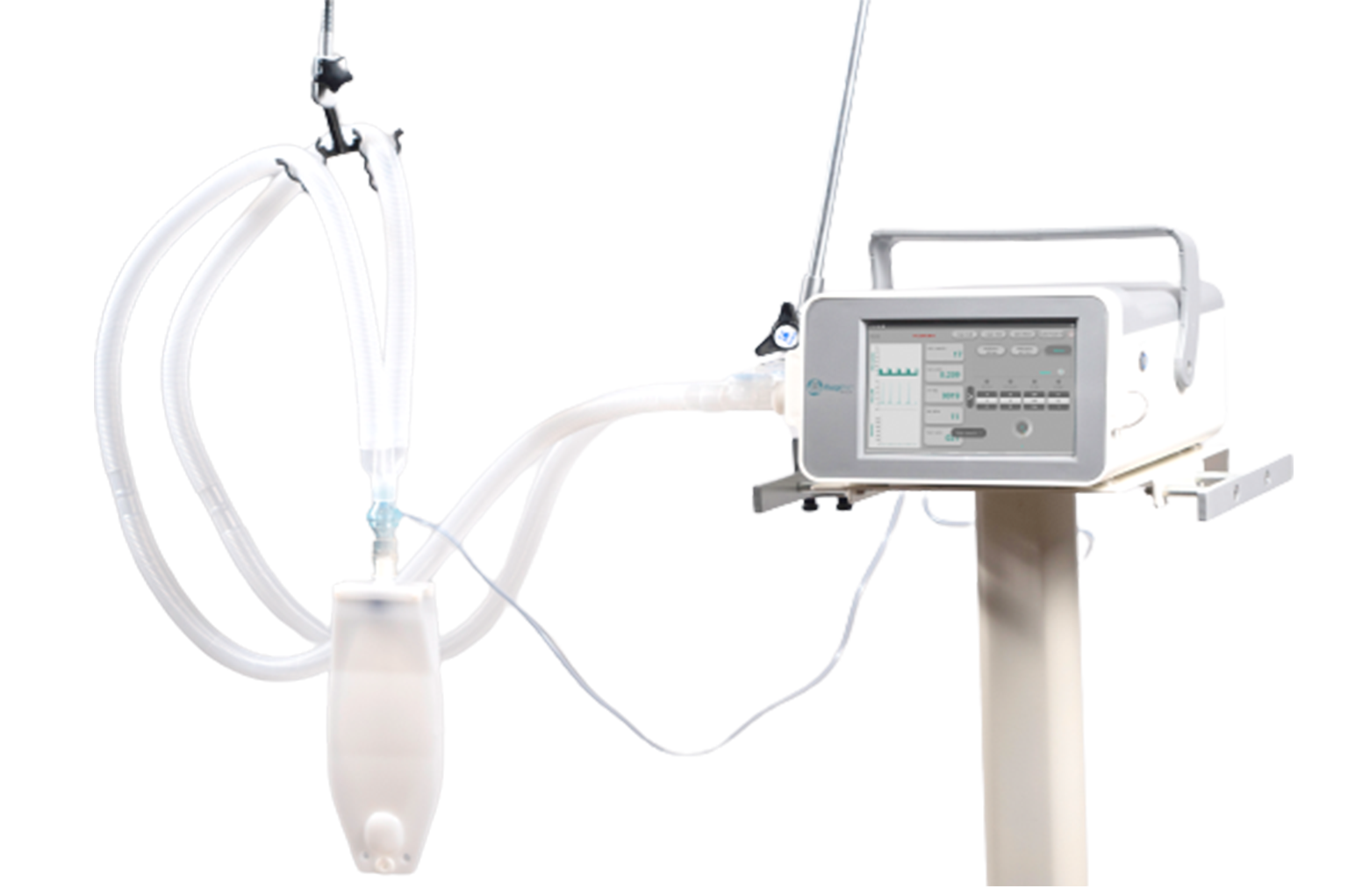

RespiWin™ 520 life support versatile ventilator is designed for use in hospitals and in transit, offering invasive and non-invasive ventilation and respiratory monitoring support.

Built with a turbine-driven ventilation system to showcase high standards of ventilation therapy in any challenging environment or acute situation. From initial setup to everyday use, RespiWin is an advanced, high quality ICU & In-transit ventilator combined with ease of operation.

1

Support both Invasive & Non-Invasive ventilation type

2

Spontaneous breath detection

3

Breath detection sensitivity

4

Inhale / Exhale pressure selection

5

Separate pressure control for Assist Breath to get better synchrony

6

Spontaneous breath rate monitoring to analyse weaning

7

Due to small form factor it can be used as both ICU and transport ventilator

8

Support both central gas line & cylinder gas connectivity

9

Wide range of I:E ratio

10

Realtime graph of Volume, Pressure and Flow for breathing pattern analysis

11

Up to 3 hours battery backup for emergency situation

12

Easy to operate with user friendly UI

Technical Specifications
Pressure Control Ventilation Modes PC-CMV
PC-ACV
PSV
PSIMV
Volume Control Ventilation Modes VC-CMV
Support of Breathing CPAP
BiPAP S/T
BiPAP S
Patient Type Adult
Respiratory Rate 6 – 40 breath/min.
Inspiration Time 0.3 – 10 sec.
Tidal Volume 50 – 2000 ml
Inspiratory Pressure 1 – 60 cm H₂O
PEEP 0 – 50 cm H₂O
Pressure Support 0 – 50 cm H₂O
O2 Concentration 21 – 100% (Controlled by external flow meter for low flow)
Trigger Sensitivity Pressure Trigger 0 – 10 cm H₂O
Inspiratory Termination Criteria Flow Trigger 1 – 10 L/min.
10 – 75% Peak Inspiratory Flow
Ventilation Rate (I:E) 1:4 – 4:1
Minute Volume 1.8 – 40 L
Curve Display Tidal Volume, Pressure, Flow
Display Parameter Respiratory Rate
Spontaneous Breath Rate
Tidal Volume
Peak Inspiratory Pressure
Oxygen Concentration
PEEP

Alarms & Safety

Peak Airway Pressure High – Low
Tidal Volume High – Low
Apnea Time 0.5 – 20 sec
Spontaneous Breathing Frequency High – Low
Respiratory Rate High – Low

Operating Data

Power Connection 24V DC
Current Consumption Max 3 Amps
Battery Up to 3 Hours
Interface Bluetooth + Display (View)

Gas Specification

Gas Supply Technology Turbine Technology
Gas Type Air (Inbuilt Turbine) Supply
Gas Connectivity Cylinder, Central Gas Line

Device Details

Weight Approx. 4.5 Kg
Diagonal Screen Size 8.1″

Note : To control temperature and humidity external humidifier will be required.

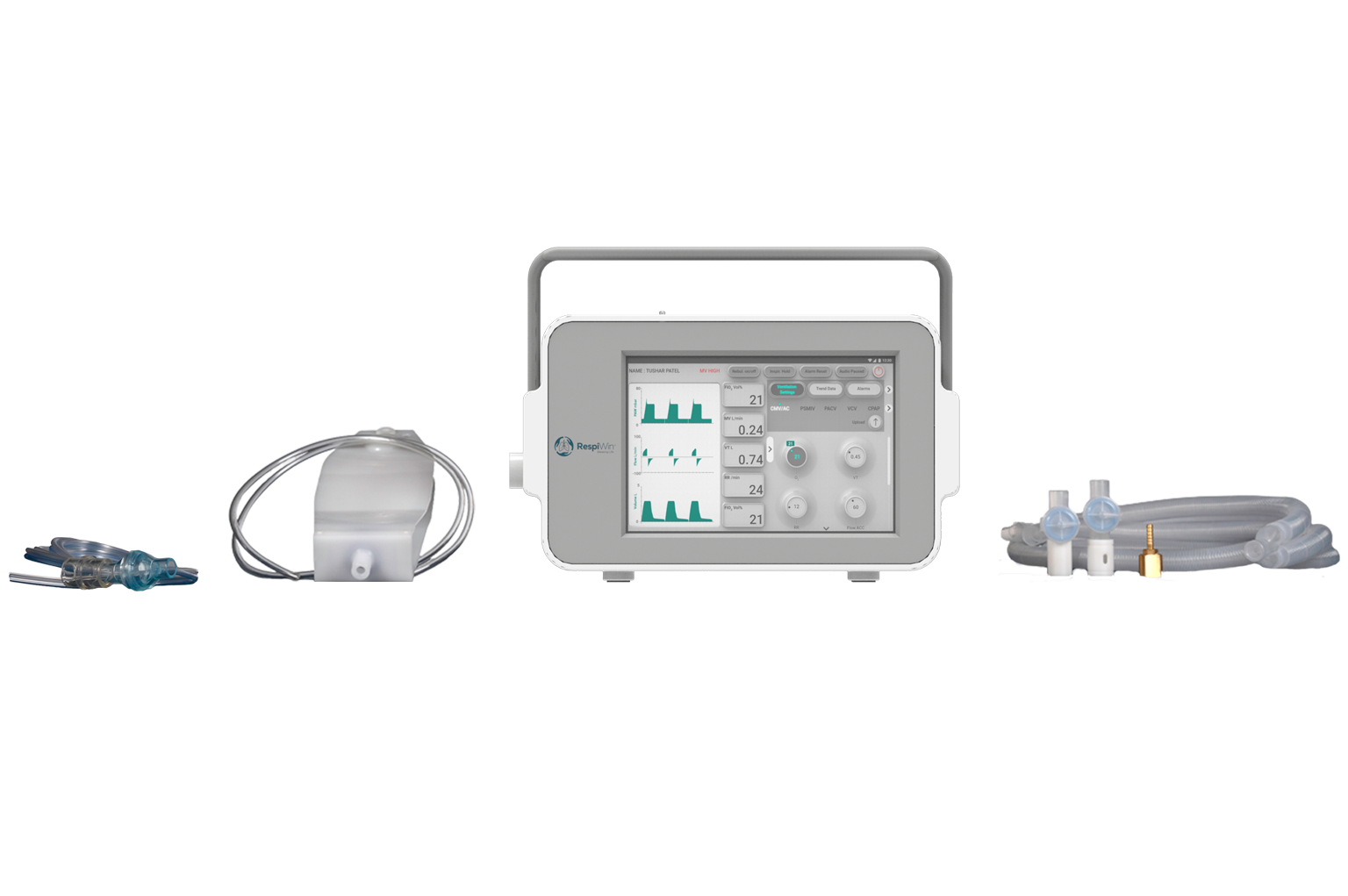

Included Accessories
Basic Parameter RespiWin 520 Competitors
Modes PC-CMV,PC-ACV, PSV, PSIMV,
VC-CMV, CPAP, BiPaP S/T, BiPaP S		 VC-CMV,VC-AC,VC-SIMV,
PC-SIMV,PC-AC,SPN-CPAP
Technology Turbine Turbine / Compressor
Maximum Flow Delivery 260 L/Min. 250 L/Min.
Tidal Volume (mL) 50-2000 50-2000
Peak Pressure (cmH2O) 1 – 60 0 – 60
PEEP (cmH2O) 0-50 0-50
Accurate monitoring of delivered
volume & air pressure with proximal sensors		 Yes Selected Models
Dual Display for Emergency Yes No
Wrong Parameter Safety Yes Selected Models
Battery Backup Upto 3 hours Upto 3-4hrs Avg.
Remote Operation & Monitoring Yes No
Breath Log Yes Selected Models
Operation Log Yes Selected Models
Portablity Easy Varies As per Different Models
Commercial Parameter RespiWin 520 Competitors
Cost 1/5 Cost of Competitor Avg Approx 10 lakh +
Warranty 1 Year Replacement Gaurantee Usually 1 year without CMC
